The RUNVA 13 000lbs ADVENTURE SERIES winch is not just a winch; it’s your ultimate companion for
conquering the most challenging off-road terrains. Engineered with an impressive line pull capacity of 13
000 pounds (5 897 kg) and a rapid 228:1 gear ratio, this winch is designed for peak performance in even the
most demanding environments.
Whether you’re tackling steep inclines, navigating through mud, or facing
unforeseen challenges, the 13 000lbs ADVENTURE SERIES winch provides the strength and reliability you
need to tackle any situation. The 13 000lbs ADVENTURE SERIES winch is designed for versatility,
compatible with most bull bars on the market.
This seamless integration ensures it enhances your off-road
setup without compromising valuable space or adding excessive weight. The robust design of the 13 000lbs
ADVENTURE SERIES winch guarantees that it stands up to the rigors of outdoor use, providing confidence
that you are equipped for any recovery operation and 1 meter submersible.
Technical Specifications:
RATED LINE PULL: 13,000LB (5,897KG)
MOTOR: (12V) 5.0KW / 6.7HP; (24V) 6.0KW / 8.2HP
GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY
GEAR RATIO: 228:1
CLUTCH TYPE: STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION: GEARBOX CAN BE ROTATED
BRAKE: AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE: SYNTHETIC ROPE
CABLE SIZE: 17/16″ X 82.0′ (11MM X 25M) | 25,250LB RATING
DRUM SIZE: 2.48″ X 8.5″ (63MM X 217MM)
MOUNTING BOLT PATTERN: 10″ X 4.5″ (254MM x 114.3MM)

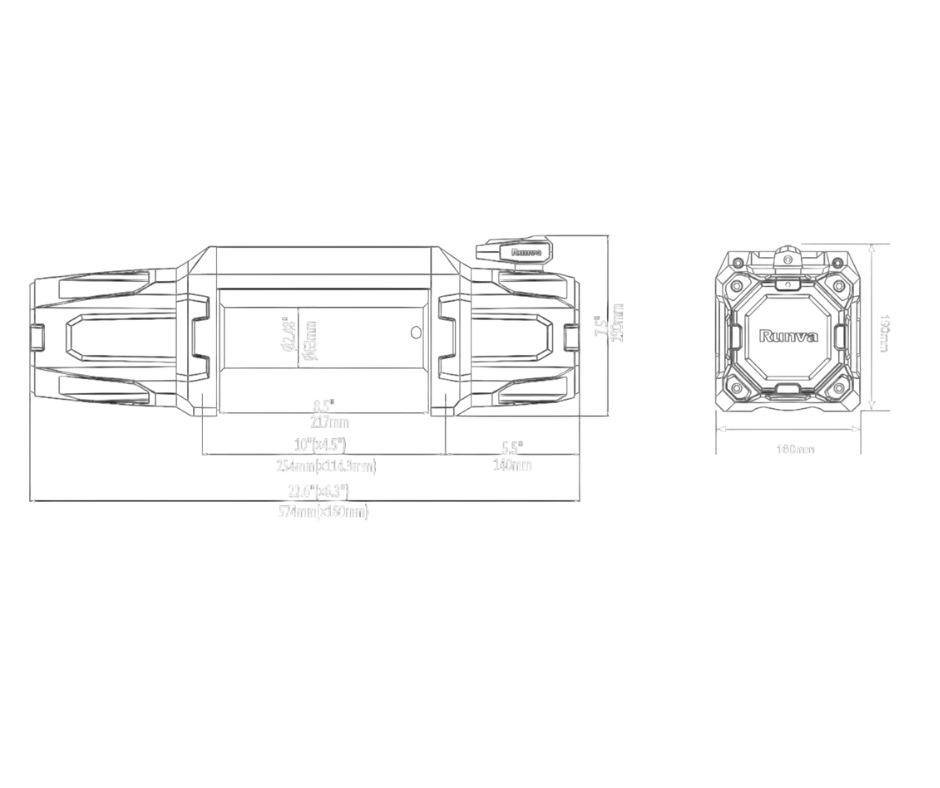

OVERALL DIMENSIONS: 22.6″ X 6.3″ X 7.5″ (602MM X 160MM X 200MM)

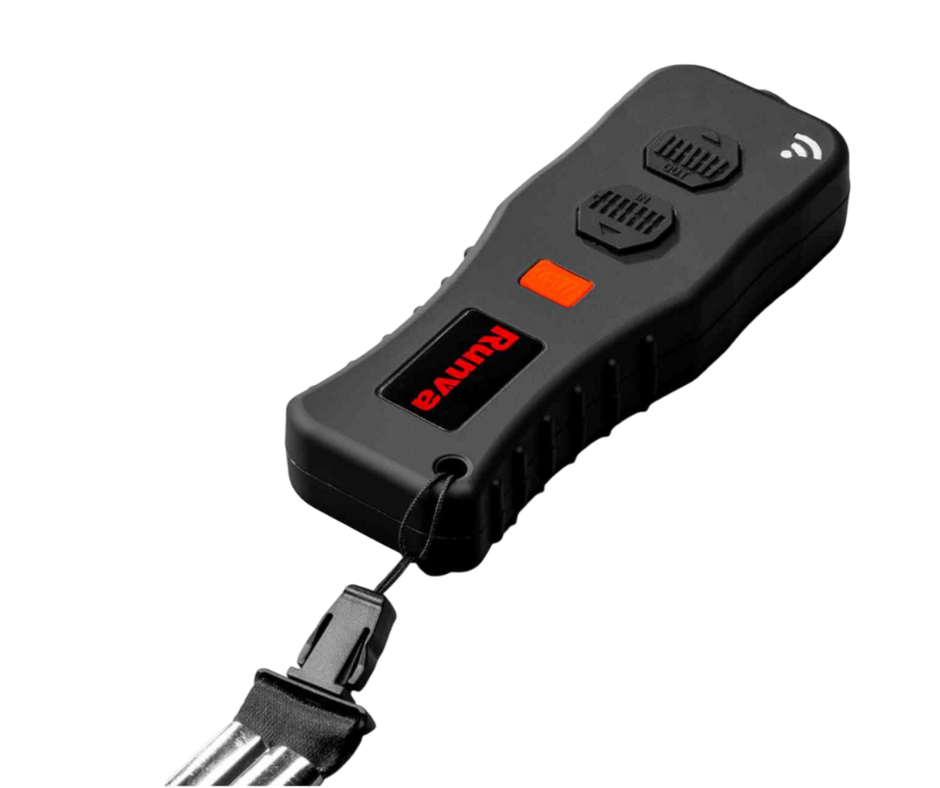

REMOTE CONTROL: EXPEDITION WIRELESS REMOTE
BATTERY LEADS: 2X 1.8M HEAVY DUTY LEADS
FINISH: BLACK POWDER COAT
